All Aura systems are designed in close partnership with our customers to meet their specific needs.

Fired heating systems

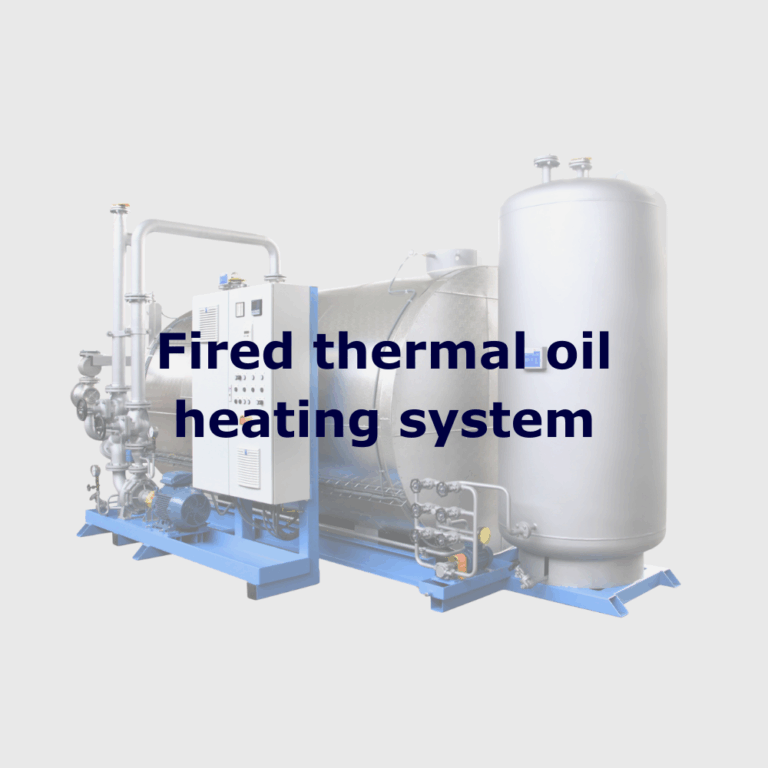

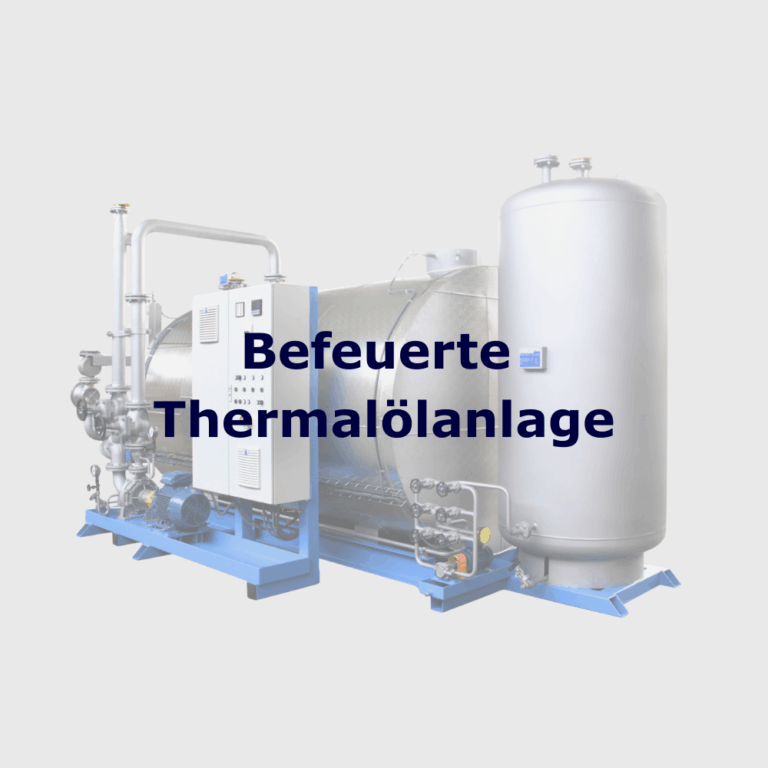

Fired thermal oil heating system

System Properties:

AURA thermal oil heating systems guarantee particularly high efficiency, are easy to operate and are especially protected against wear. The special feature of thermal oil compared to steam and water is the low pressure even at higher temperatures. Thermal oil can be heated up to 430°C. In addition, AURA thermal oil heating systems are characterised by a thermal oil flooded reversing plate that connects the inner and outer coils. This allows the thermal oil to flow through the channels in the rear wall of the boiler and to cool it down. This ensures a long system life compared to concrete back walls. Heated thermal oil systems from AURA are therefore practically maintenance-free. In addition, the use of thermal oil ensures that damage from corrosion or freezing is eliminated.

Exemplary system

1600kW, 66 m3/h, 300°C

More sample Images:

More sample Images:

Water bath heater for natural gas preheating

System Properties:

AURA water bath heaters are fully automatic heating systems, specially designed for heat treatment in the expansion of natural gas and heating of crude oil. In addition, the water bath heaters are also suitable for outdoor use and are fully weatherproof. Due to the special high pressure tank, AURA water bath heaters are compact and can be easily integrated into your industrial systems.

Exemplary system:

1200kW, 100 m3/h , ΔT 20 K

More sample Images:

More sample Images:

Type Of Heating :

Consumer Medum :

Temperature Range :

Power Range :

AURA Type :

fuel oil, diesel, heavy oil, natural gas , Other specialty combustibles

Thermal Oil

Up-to 400°C

100kW up to 25,000kW

AKxT

AURA thermal oil heating systems guarantee particularly high efficiency, are easy to operate and are especially protected against wear. The special feature of thermal oil compared to steam and water is the low pressure even at higher temperatures. Thermal oil can be heated up to 300°C even at normal pressure. In addition, the AURA thermal oil heating systems are characterized by a cooled insert for a drastically extended durability of the materials. Heated thermal oil systems from AURA are therefore practically maintenance-free. In addition, the use of thermal oil ensures that damage from corrosion or freezing is eliminated.

Up to: 500kW, ΔT40K

All AURA systems are individually designed and customized for specific requirements in a close and cooperative process with our customers.

Type Of Heating :

Consumer Medum :

Temperature Range :

Power Range :

AURA Type :

Flue Oil, Diesel, Natural gas

Gaseous media, Liquid media

120°C – 230°C

up to 10000 kW

WABH

Our water bath heaters are used at gas reduction stations where the pressure and quality level of gas coming from a pipeline is regulated and adjusted before it is injected into a distribution network. Through our heaters, the cooling of the gas is raised to the desired temperature by means of expansion. Our units can be both fired and electrically heated.
